01 / System element
Independent modules
A floor is built from repeating units, so the layout can be configured around the vessel and its discharge point.
Product systems / Modular by design
One module at a time. A floor built for your vessel.
WaveFloor combines independent floor modules, sensing, controls, and a vessel-specific layout to reclaim bulk materials with a controlled sequence.
The building block
An independent unit. A coordinated floor.
Each module contributes controlled wave action where material gathers near the outlet. Together, the units form an integrated reclaim floor, with the arrangement tailored to the storage geometry and material-flow requirements.
Explore the interactive systemSystem architecture
Engineered as a working whole.
02 / System element
Designed for the structure
Spring-mounted drive assemblies help isolate operating forces from the storage vessel.
03 / System element
Efficient reclaim
Gravity does the primary work while sensor-led zones support the final stages of discharge.
Layouts / vessel-specific
Radial or linear. Planned around the outlet.
The reclaim floor follows the storage footprint. These examples show two common arrangements; final module layouts are confirmed during engineering.

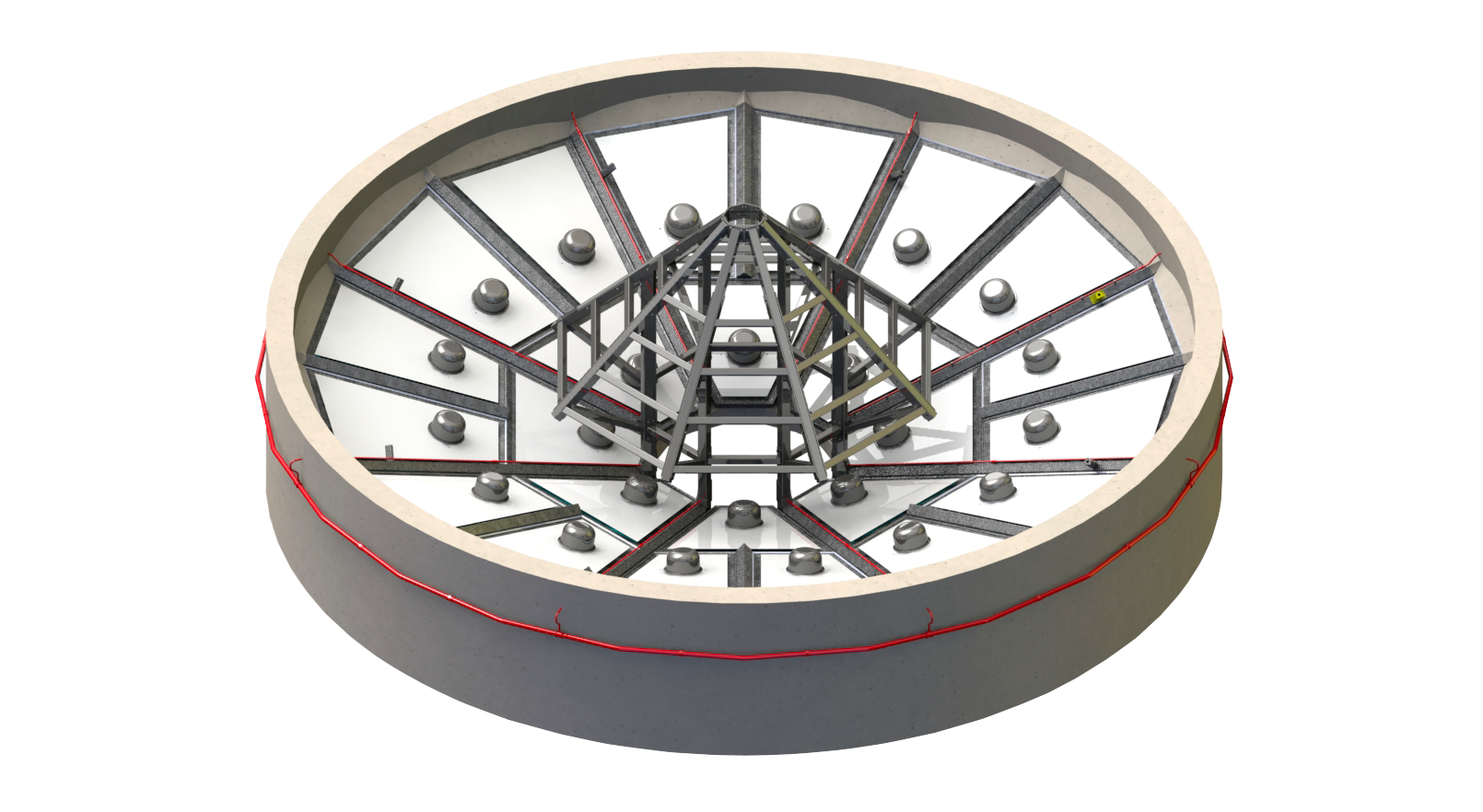

Conical storage
Radial rows converge toward a central outlet.

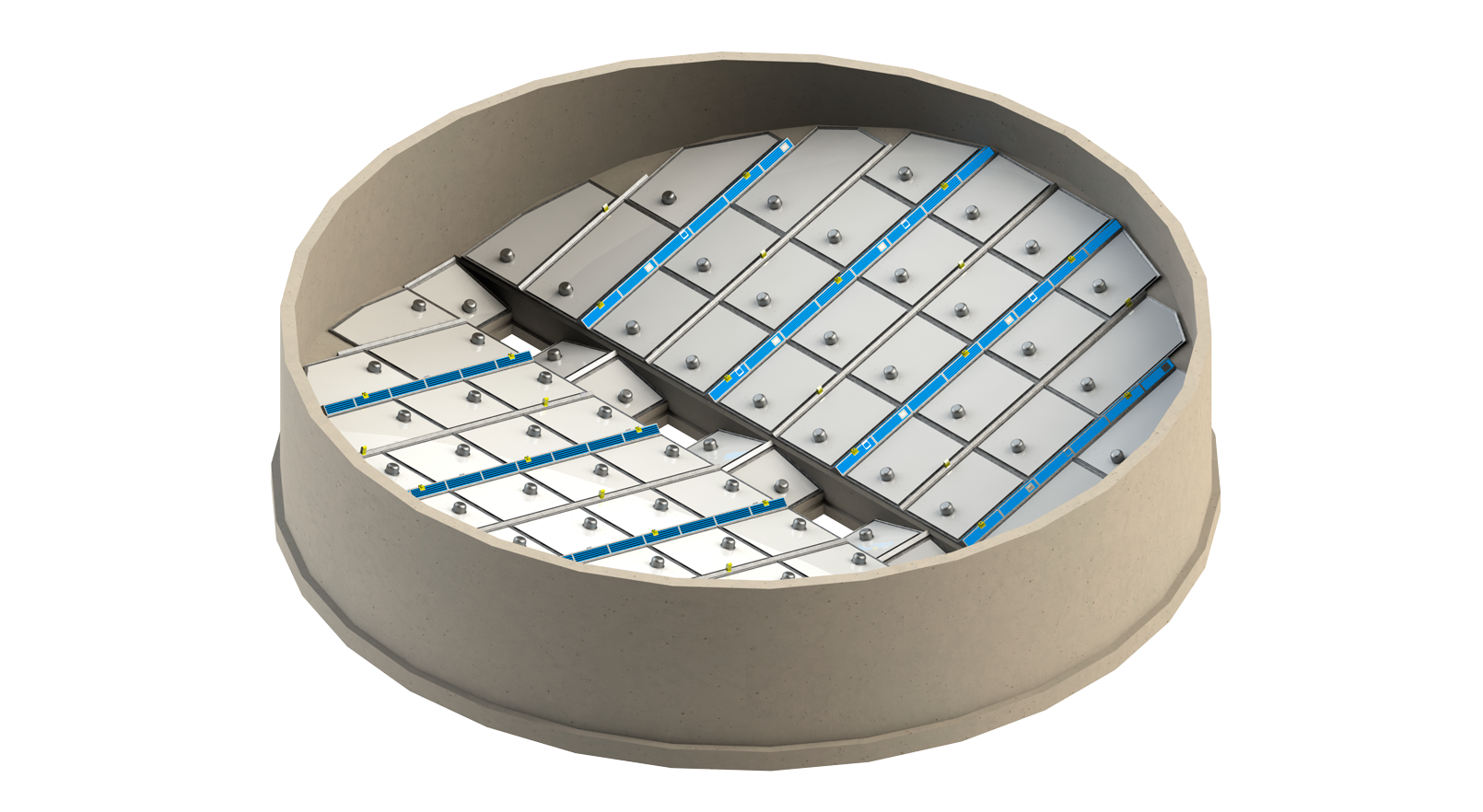

Linear storage
Parallel rows serve rectangular vessel footprints.
Want to see the full system?
